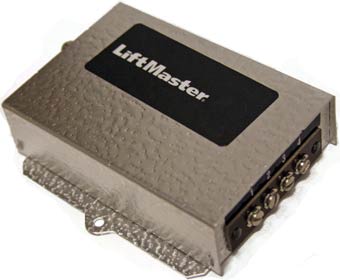

Liftmaster 412HM receiver

Liftmaster

412HM Universal Coaxial Gate & Garage Receiver

390 MHz Security+ coaxial receiver — the green/orange/red counterpart to the 312HM. Adds billion-code DIP-switch backwards compatibility for older fleet remotes alongside Security+ rolling code. Two-piece aluminum case, 12 V DC or 18–35 V AC/DC.

$44.95 List $64.95 ● In stock — ships next business day
Add to cart
🛟 Free technical support 📄 Programming & FAQ
  • ModelLiftmaster 412HM
  • Frequency390 MHz · Security+ rolling + billion-code DIP
  • Compatibility390 MHz Security+ & billion-code remotes
  • Capacity15 high-security · 31 normal-security
  • Power12 V DC or 18–35 V AC/DC, jumper-selectable
  • Enclosure2-piece aluminum case · coaxial antenna

In the box

  • Liftmaster 412HM receiver
  • Coaxial antenna
  • Mounting hardware
  • Programming & instruction manual

Compatibility

Confirmed-compatible remotes, openers, and typical applications. If your model isn't listed, send us a photo and we'll verify before you buy.

Compatible 390 MHz Security+

Liftmaster 970LM 971LM 972LM 973LM 974LM

Compatible billion-code

Liftmaster 61LM 62LM 63LM 64LM 66LM 466LM 81LM 82LM 83LM 84LM 86LM

Compatible keypads

Liftmaster 976LM

Typical applications

Gate operators Mixed-fleet retrofits Commercial openers

The 412HM's killer feature is dual compatibility: it learns both modern 390 MHz Security+ rolling-code remotes and the older billion-code DIP-switch remotes. Ideal when you're replacing an old receiver but tenants still hold legacy fobs.

Programming the 412HM

Mount the antenna, wire to the operator board, then learn each remote — Security+ rolling-code and billion-code DIP-switch remotes pair with the same procedure.

  1. Wire the 412HM to your gate operator or opener control board. Set the power jumper to match your operator (12 V DC or 18–35 V AC/DC).
  2. Press the learn button on the 412HM. Choose high-security or normal-security mode per the manual.
  3. Press the desired button on each remote within the learn window — Security+ remotes pair instantly; billion-code remotes pair after their DIP-switch sequence is read.
  4. Repeat for each additional remote up to capacity.

When mixing remote types, use normal-security mode (31 codes) for capacity. The 412HM auto-detects which protocol each remote uses.
